100W Mini jewelry laser welding machine
Laser welding machine

100W Mini jewelry laser welding machine

Jewelry laser welding machine is mainly used for spot welding, seam welding, and inlay welding of precision metal parts such as gold and silver jewelry, jewelry, and watches. This device uses high-energy laser pulses to locally heat small areas of materials, forming a molten pool through thermal conduction to achieve welding. It is widely used in industries such as aviation, aerospace, sports goods, jewelry, golf heads, medical equipment, aluminum alloy dentures, instruments, electronics, mechanical processing, automobiles, etc. for hole filling, spot welding seam patterns, embedded parts, and claw foot welding. Support precision welding of platinum, K-gold, silver, titanium gold, stainless steel, copper, aluminum and their alloy materials, especially suitable for repairing holes, spot welding sand holes and claw foot parts of gold and silver jewelry.

  • Machine model IMG-JW100
  • Max laser power 100W
  • Laser type YAG
  • Laser wavelength 1064nm
  • Pulse width regulation 0.1-10MS
  • Laser welding frequency 1-15HZ

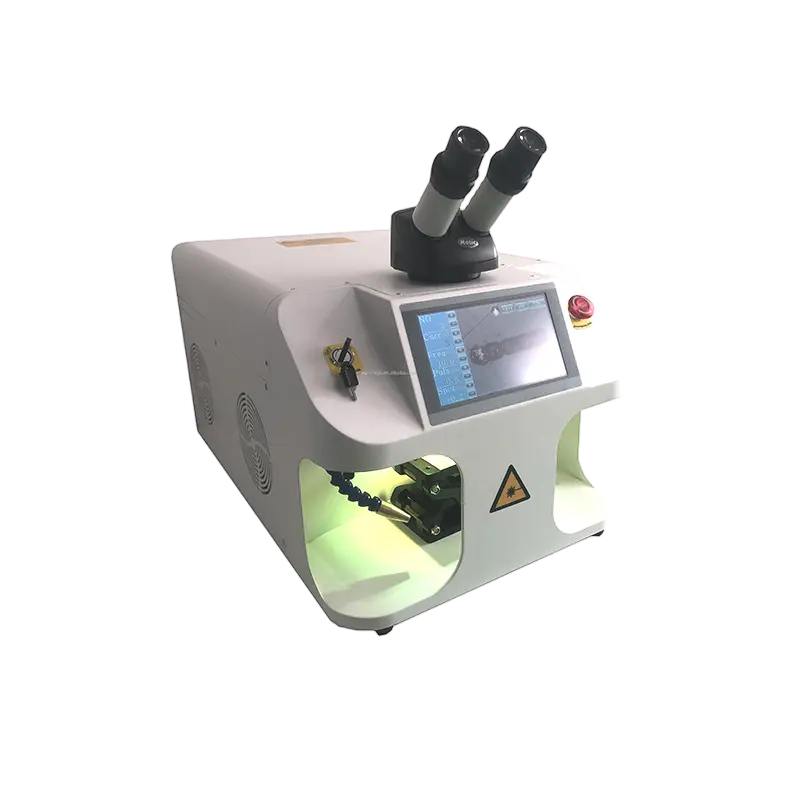

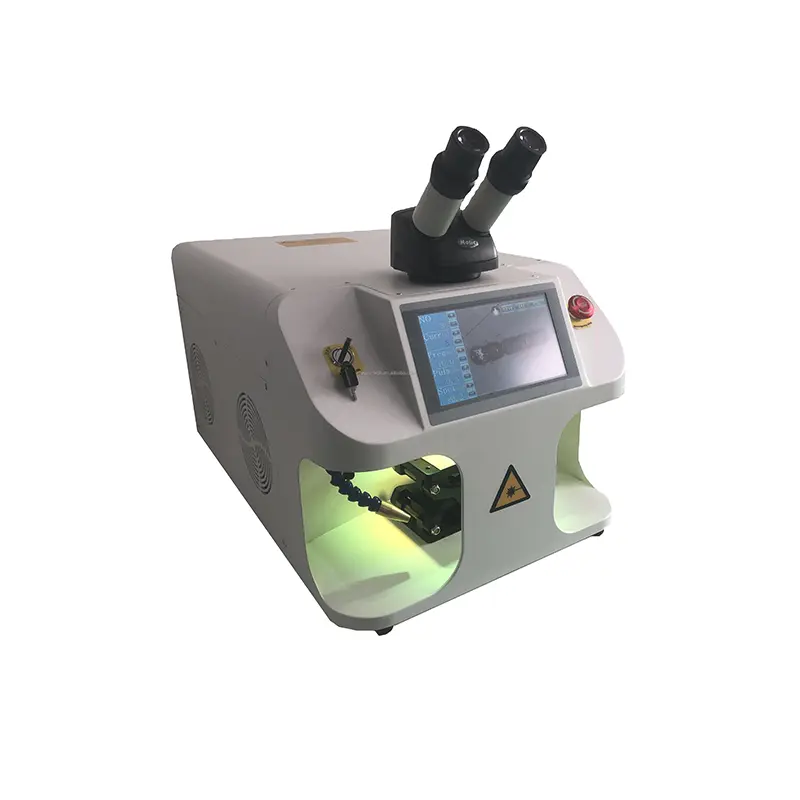

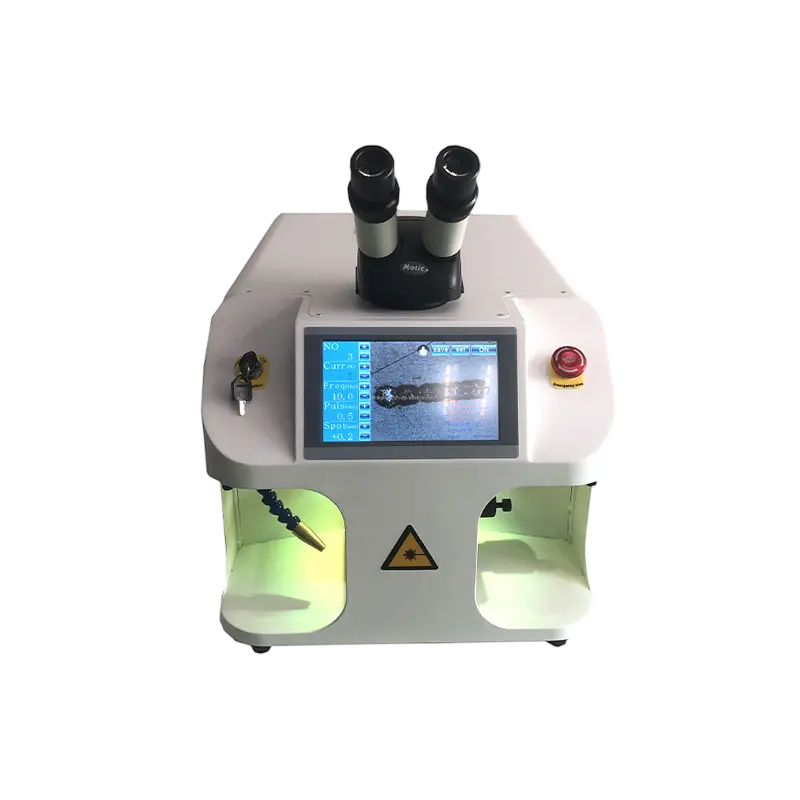

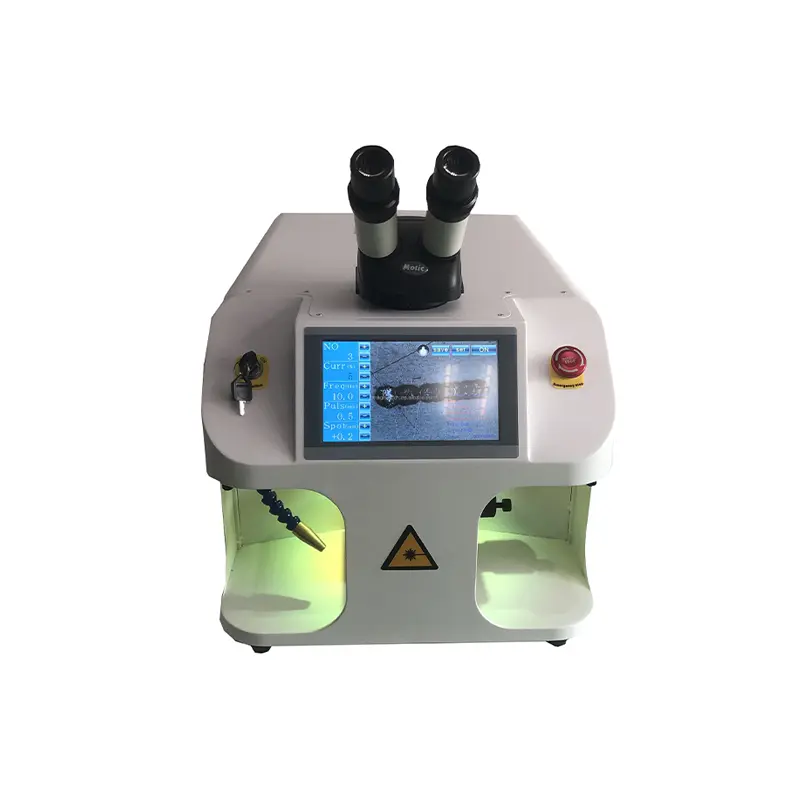

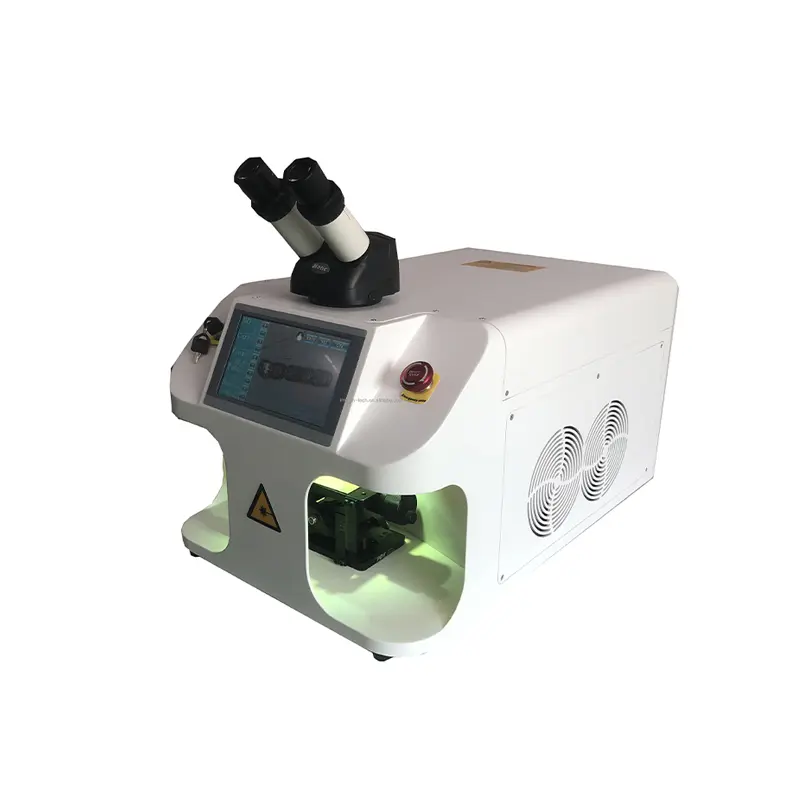

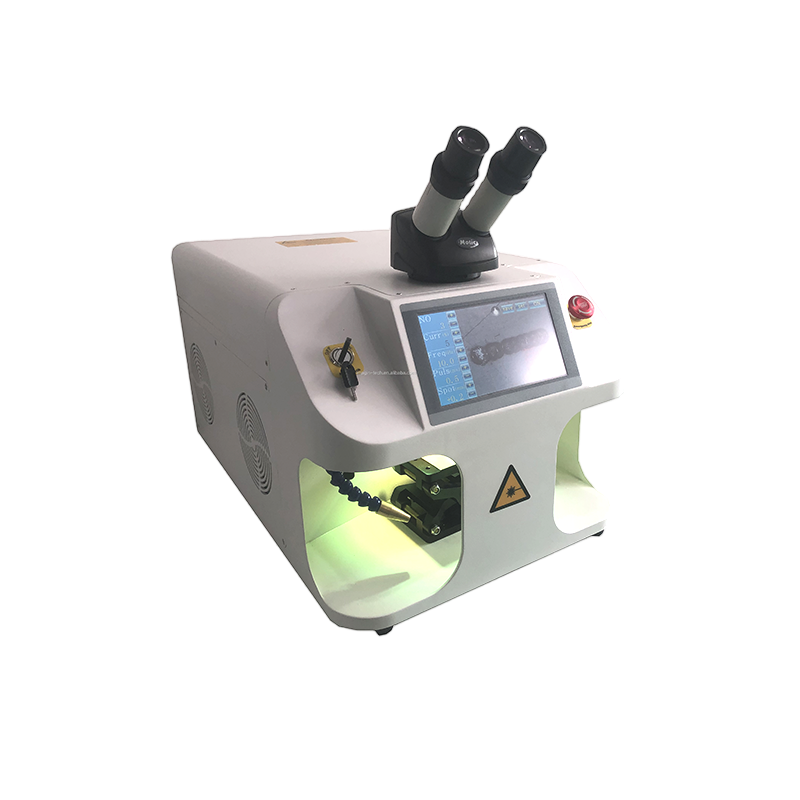

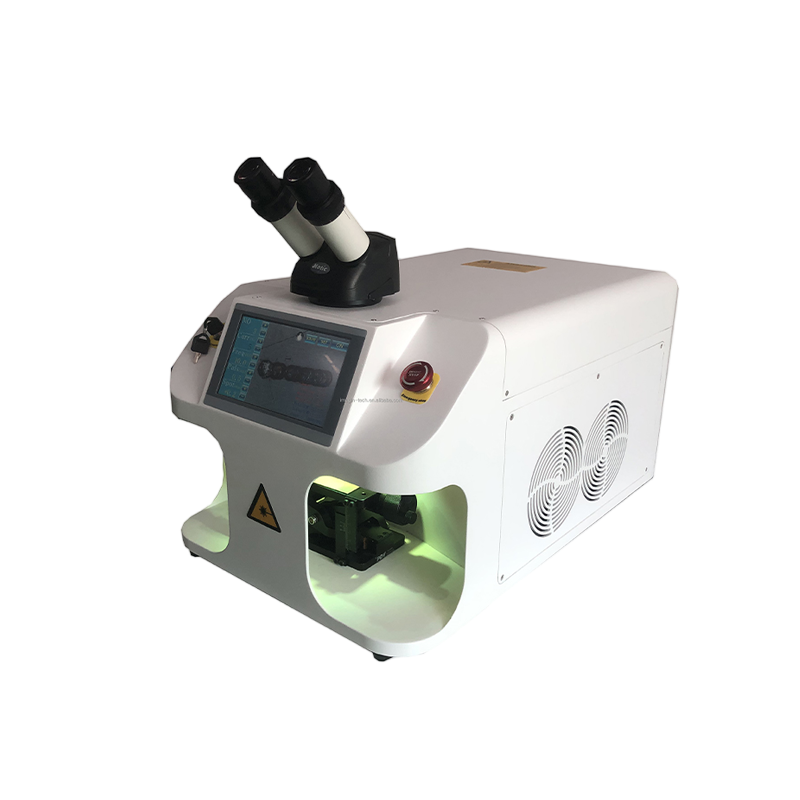

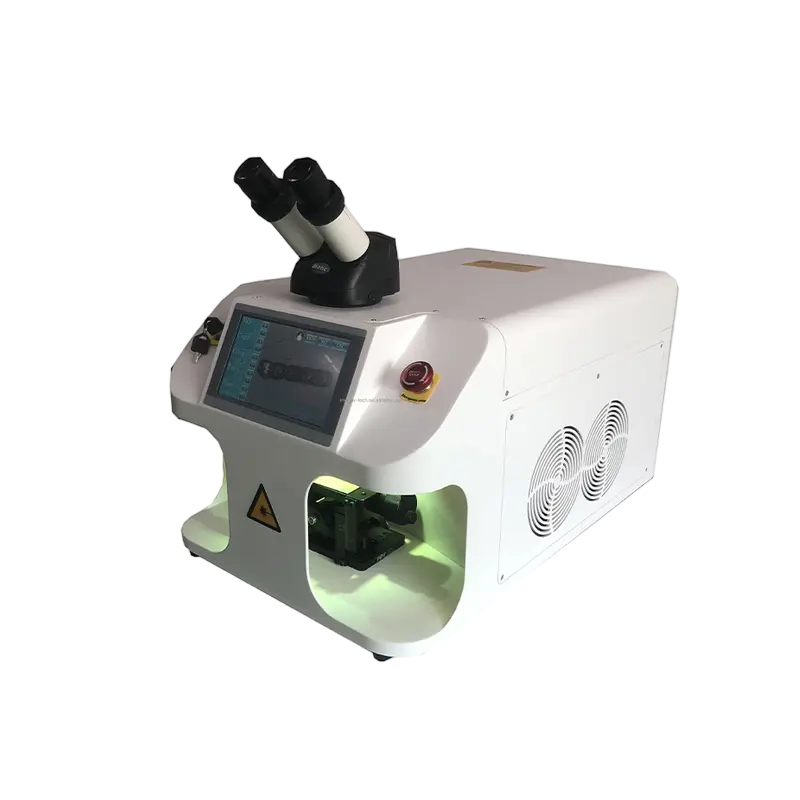

product image

100W首饰焊透明主图1100W首饰焊透明主图2100W首饰焊透明主图3

Product Parameter

Machine model

IMG-JW100

Max laser power

100W

Laser type

YAG

Laser wavelength

1064nm

Pulse width regulation

0.1-10MS

Laser welding frequency

1-15HZ

Maximum single-pulse energy

80J

MIcroscope

10X

Welding the width

0-3mm

Noise

≤60db

Working temperature

55°F(13°C)-95°F(35°C)

Working Humidity

5%-75%

Power required

AC220V±5%   50Hz

Interiorinput power

3KW

Color

White

Net weight/Gross weight

40KG/56KG

Machine size

582*375*314mm

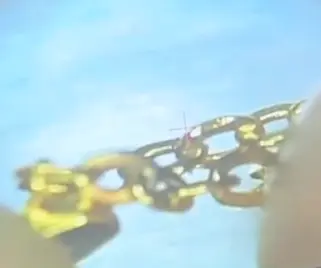

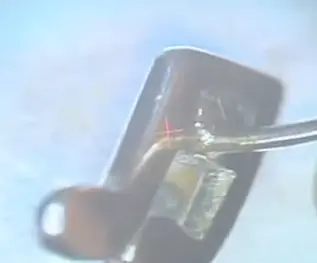

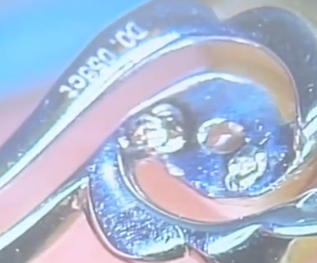

Welding effect

焊接效果1焊接效果2焊接效果3焊接效果4

Product Features

1. Energy, pulse width, frequency, and spot size can be adjusted within a large range to achieve various welding effects. The parameters are adjusted by a closed cavity control rod, which is simple and efficient.
2. Advanced ceramic spotlight chamber is adopted, which is corrosion-resistant, high-temperature resistant, and has high photoelectric conversion efficiency. The spotlight chamber and xenon lamp have a long service life.
3. Adopting advanced automatic shading system eliminates eye irritation during working hours.
4.Equipped with a condenser tube and fan composite cooling system, it can achieve continuous operation and stable overall performance.
5. Humanized design, conforms to ergonomics, and works for long hours without fatigue.

description2

Product details

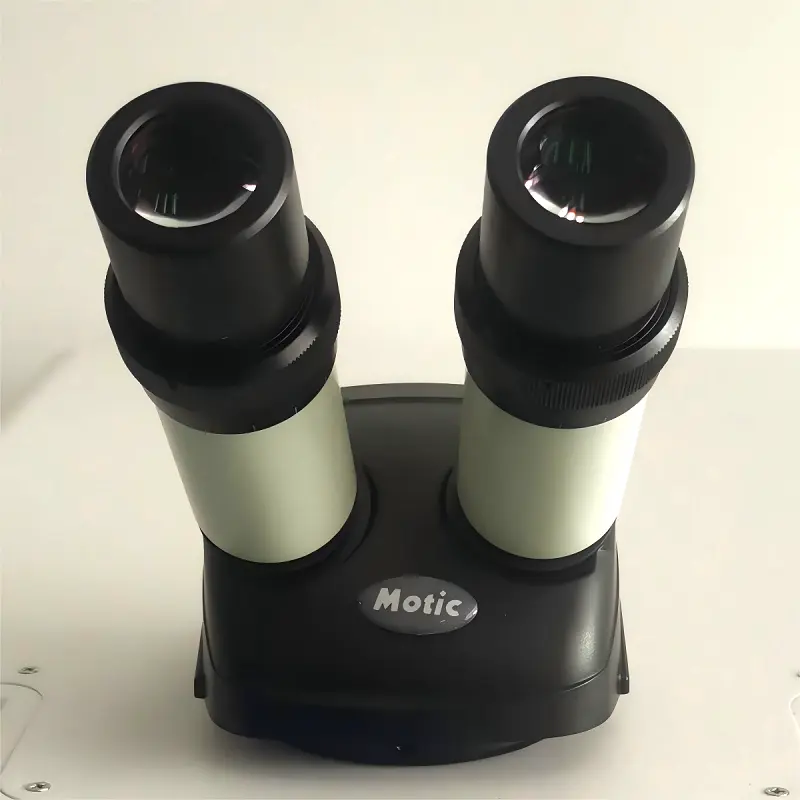

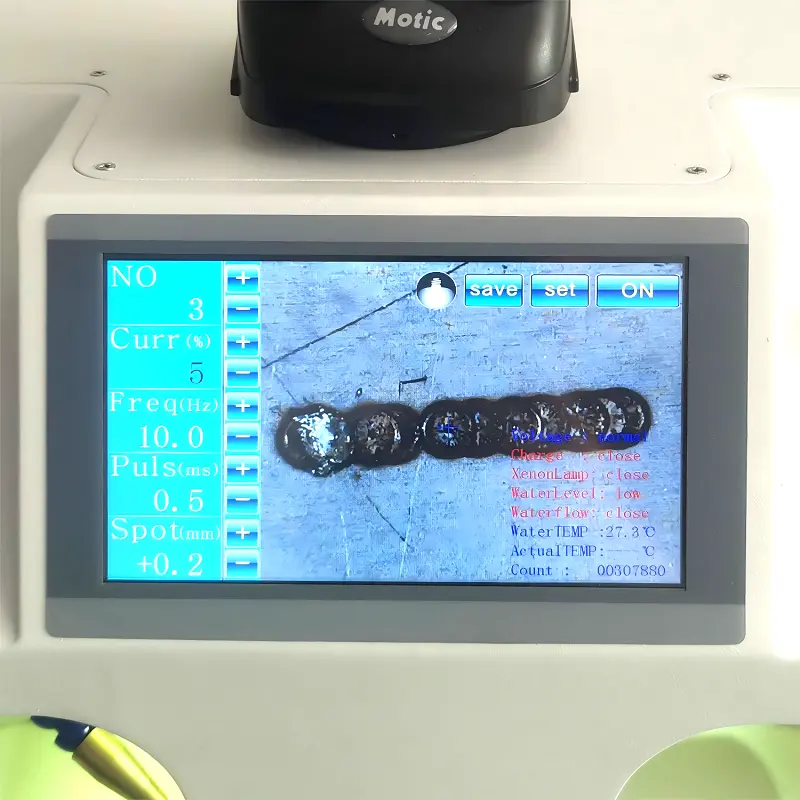

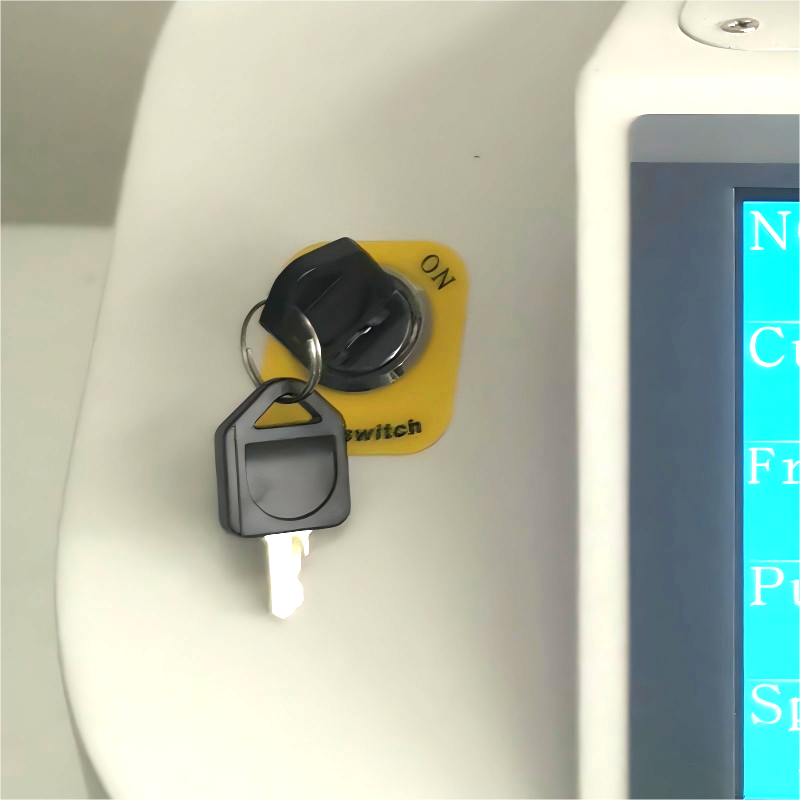

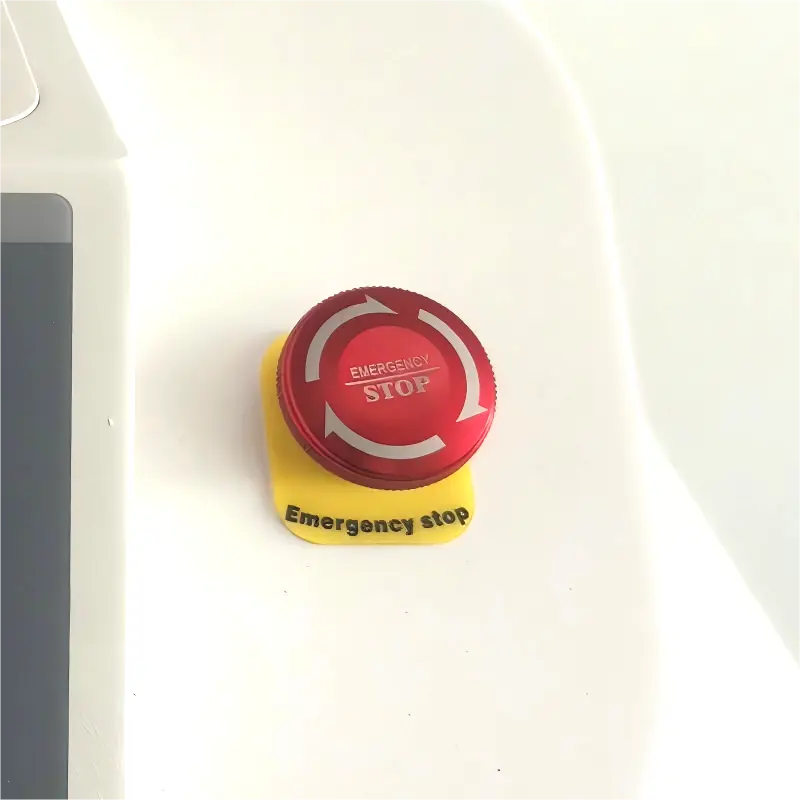

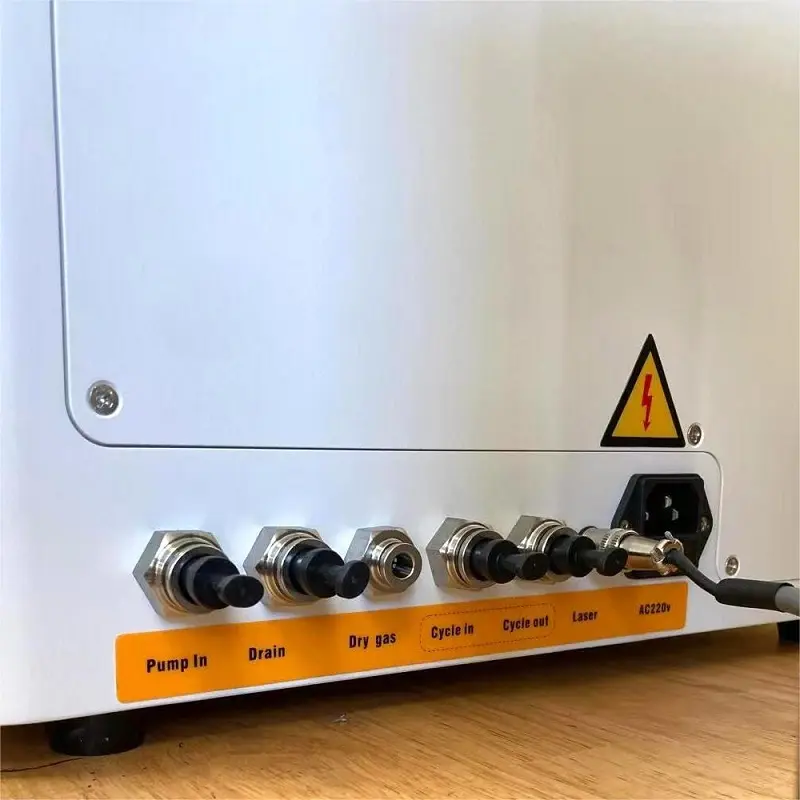

钥匙开关显微镜显示屏接线图急停开关
